Würth Elektronik WE-MCRI SMD Molded Coupled Inductors

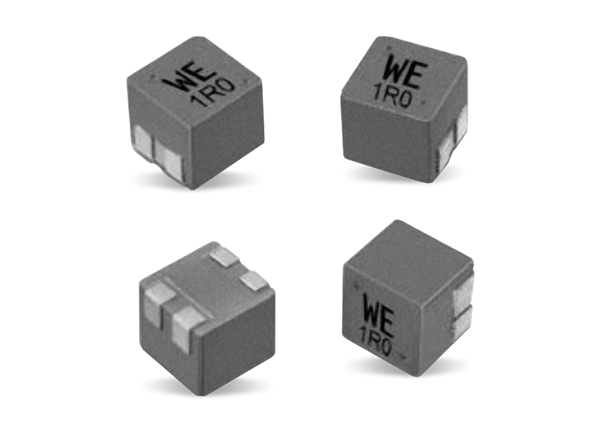

Würth Elektronik WE-MCRI SMD Molded Coupled Inductors feature two identical round wire-windings and a molded core that provides a compact (10mm x 11.5mm x 9mm) attractive design with excellent electrical and improved EMI performance. The WE-MCRI inductors offer up to 17A rated current and up to 43.5A saturation current. The special winding style of the WE-MCRI products provides an excellent coupling coefficient of up to 0.995, which means far less leakage inductance. This coupled power inductor is an ideal solution for SEPIC and Ćuk switching converters where high-rated and saturation current with high-coupling coefficients are required. Typical applications include flyback converters with a 1:1 turn ratio and step-up/step-down converters with secondary, isolated output voltage.
Features
- Magnetically shielded
- 1:1 transformer
- Excellent electrical and improved EMI performance
- Molding technology
- Compact design
- Better leakage inductance (Lk) and rated current (Ir) than comparable components
- -40°C to +125°C operating temperature range
Applications
- Isolated converters like flyback converters
- Buck-boost, SEPIC, ZETA, and Ćuk converters
- Switching regulators with second and unregulated output voltage
Associated Tool
Würth Elektronik REDEXPERT AC Loss Tool
Online software tool that simulates power inductors for precision comparison.
Related Inductors
Würth Elektronik Dual Coil Power Inductors
Shielded, unshielded, flatwire, dual power choke, molded, energy harvesting, high voltage, and more.
Würth Elektronik Inductores acoplados
Adecuados para el convertidor SEPIC, Flyback, y aplicaciones de convertidores tipo buck de múltiples salidas.
View Results ( 25 ) Page
| N.º de artículo | Hoja de datos | Inductancia - Paralela | Corriente CC máxima | Resistencia CC máxima | Longitud | Ancho | Altura |
|---|---|---|---|---|---|---|---|
| 7448991220 |  |
22 uH | 2.2 A | 160 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448991010 | |
1 uH | 12 A | 7.5 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448991047 | |
4.7 uH | 6.2 A | 29 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448991150 | |
15 uH | 3.25 A | 95 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448990100 | |
10 uH | 4.5 A | 69 mOhms | 11.5 mm | 10 mm | 9 mm |
| 7448990220 | |
22 uH | 3.4 A | 106 mOhms | 11.5 mm | 10 mm | 9 mm |
| 7448990033 | |
3.3 uH | 7.5 A | 26 mOhms | 11.5 mm | 10 mm | 9 mm |
| 7448991068 | |
6.8 uH | 5 A | 44 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448991082 | |
8.2 uH | 4.7 A | 46 mOhms | 10 mm | 10 mm | 4.1 mm |
| 7448990150 | |
15 uH | 3.9 A | 87 mOhms | 11.5 mm | 10 mm | 9 mm |
Publicado: 2018-02-07
| Actualizado: 2024-05-10
