Texas Instruments TLV75x-EVM Evaluation Modules
Texas Instruments TLV75x-EVM Evaluation Modules are reference designs for engineering demonstration and evaluation of the TLV751 and TLV752 devices. The TLV751 is a 500mA, dual-channel, high-accuracy, adjustable, linear, low-dropout (LDO) regulator. The TLV752 is a 1A, dual-channel, high-accuracy, adjustable, linear, low-dropout (LDO) regulator.
The Texas Instruments TLV75x-EVM Evaluation Modules feature a 1.5V to 6V input range and a 0.55V to 5.5V adjustable output voltage. These evaluation modules have a 1.5% high output accuracy and 25µA (typ) IQ.
Features
- 1.5V to 6V input voltage range
- 0.55V to 5.5V adjustable output voltage
- 1.5% (maximum over temperature) high output accuracy
- 25µA (typ) IQ
- Built-in soft start with monotonic VOUT rise
Additional Resources

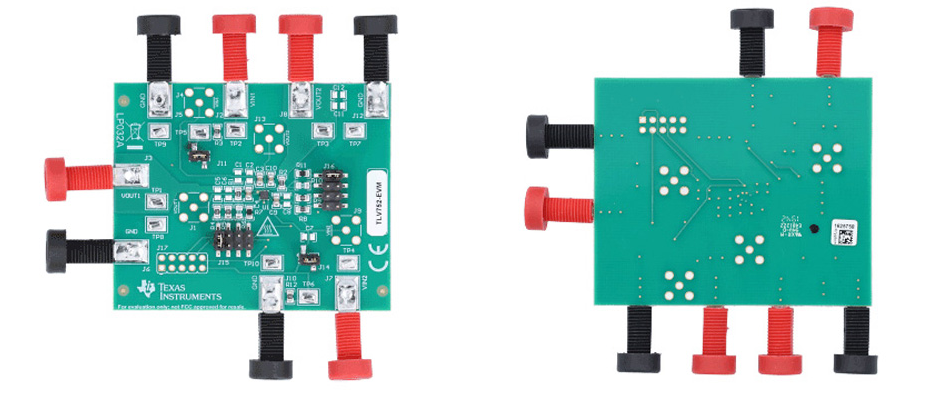

Front & Back View
Related Products
Texas Instruments TLV751 Dual Adjustable 500mA LDO Regulator
Consumes 25µA quiescent current while providing fast line and load transient response.
Texas Instruments TLV752 Dual Adjustable 1A LDO Regulator
Consumes 25µA quiescent current while providing fast line and load transient response.
