Texas Instruments bq25856EVM Controller Evaluation Module (EVM)
Texas Instruments bq25856EVM Controller Evaluation Module (EVM) is a complete evaluation system for the bq25856 IC. The bq25856 is a buck-boost battery charge controller with a wide input range of 4.2V to 70V, a wide output voltage range of up to 70V, bidirectional capabilities, and AEC-Q100 qualification. The device offers high-efficiency DC/DC conversion over a wide voltage range. The Texas Instruments bq25856 integrates all the loop compensation for the buck-boost converter, thereby providing a high-density method with ease of use.
Features
- Feedback voltage regulation accuracy of ±0.5%
- 4.2V to 70V wide input range
- 0V to 70V output voltage range
- I2C control for flexible configuration
Applications
- Low voltage battery system
- Battery management unit
- Domain gateway
- ADAS domain controller
- Front door module

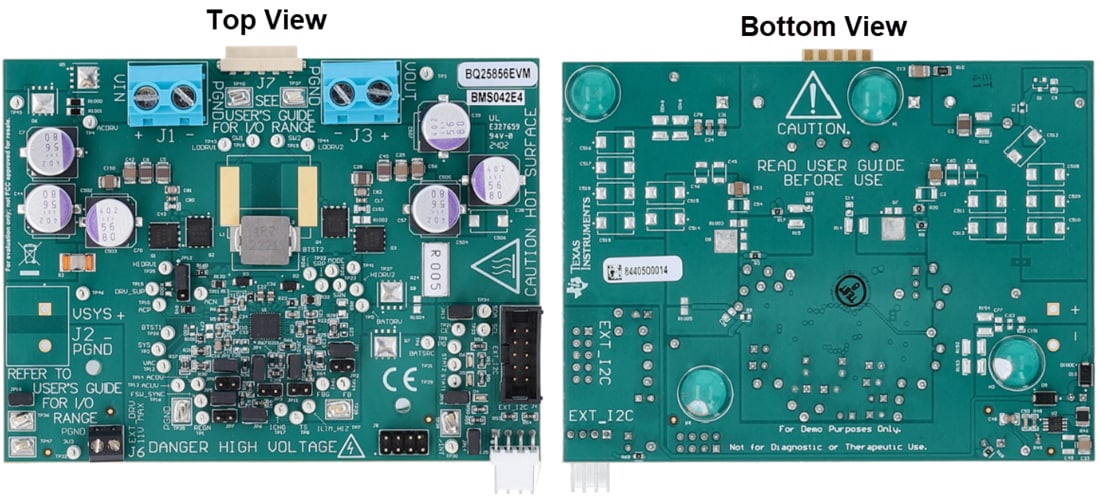

Board Layout
