Teledyne LeCroy T3DSO4000L-HD Low Profile Oscilloscopes

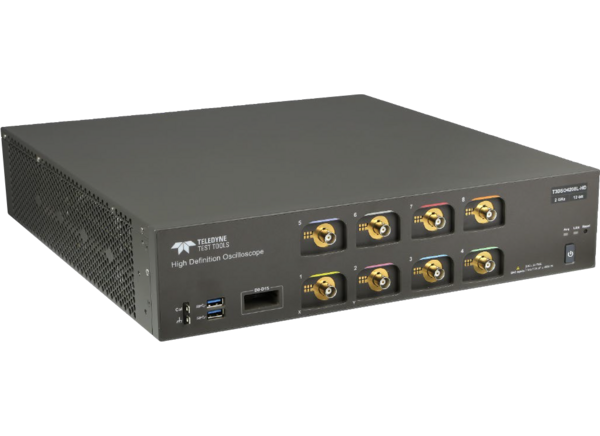

Teledyne LeCroy T3DSO4000L-HD Low-Profile Oscilloscopes feature 4-channel and 8-channel (1U high and 2U high packages) models with analog bandwidth options from 500MHz to 2GHz. The low-profile form factor, combined with 12-bit high-resolution ADCs and a low-noise front end, provides impressive noise performance. The T3DSO4000L-HD oscilloscopes provide a maximum real-time sample rate of 10GSa/s per channel and a maximum memory depth of 500Mpts/ch (1 channel). These low-profile oscilloscopes consist of a built-in 25MHz waveform generator and support remote control over a LAN port. The T3DSO4000L-HD low-profile oscilloscopes are ideal for ATE systems and automated applications.

T3PP500

The T3PP500 passive probe is the replacement probe for the T3DSO4000L-HD low-profile oscilloscopes. This passive probe features a 500MHz bandwidth, a 10x probe, and a 10:1 attenuation.

Features

  • Low profile form factor:
    • 4-channel model: 1U high package
    • 8-channel model: 2U high package
  • Analog channel bandwidth:
    • Up to 2GHz
    • Real-time sampling rate of up to 10GSa/s
  • 12-bit ADC combined with a low-noise front end provides excellent noise performance
  • Supports remote control over LAN port
  • Built-in 25MHz waveform generator
  • New generation of high-speed display technology:
    • Waveform capture rates up to 170,000wfm/s (normal mode) and 750,000wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • Memory depth up to 500Mpts/channel
    • Digital trigger system
  • 153μVrms at the full bandwidth of 2GHz low noise floor

Applications

  • ATE systems
  • Automated devices

T3DSO4000L-HD Functions and Characteristics

Teledyne LeCroy T3DSO4000L-HD Low Profile Oscilloscopes

Additional Resource

Related Probes

Teledyne LeCroy T3DSO Oscilloscope Probes

Assortment of probes compatible with T3DSO1000 and T3DSO2000 oscilloscopes.

Learn Moreacerca de Teledyne LeCroy T3DSO Oscilloscope Probes View Productsrelacionado con Teledyne LeCroy T3DSO Oscilloscope Probes

Teledyne LeCroy T3RC Rogowski Current Probes

Measurements can be made without modification to the circuit under test for more accurate results.

Learn Moreacerca de Teledyne LeCroy T3RC Rogowski Current Probes View Productsrelacionado con Teledyne LeCroy T3RC Rogowski Current Probes

Teledyne LeCroy T3CP Current Probes

1MΩ BNC AC/DC oscilloscope current probes.

Learn Moreacerca de Teledyne LeCroy T3CP Current Probes View Productsrelacionado con Teledyne LeCroy T3CP Current Probes

Teledyne LeCroy T3LVD Low Voltage Probe

Low voltage T3 oscilloscope probe for measuring up to 60V differentials.

Learn Moreacerca de Teledyne LeCroy T3LVD Low Voltage Probe View Productsrelacionado con Teledyne LeCroy T3LVD Low Voltage Probe
View Results ( 6 ) Page
N.º de artículo Hoja de datos Descripción
T3PP500 T3PP500 Hoja de datos Probetas de prueba T3DSO Passive Probe, 500 MHz, 10:1, 10 MOhm/10 MOhm, 400Vrms CAT II
T3DSO4054L-HD T3DSO4054L-HD Hoja de datos Osciloscopios de bancos de trabajo 500 MHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
T3DSO4104L-HD T3DSO4104L-HD Hoja de datos Osciloscopios de bancos de trabajo 1GHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
T3DSO4204L-HD T3DSO4204L-HD Hoja de datos Osciloscopios de bancos de trabajo 2GHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
T3DSO4058L-HD T3DSO4058L-HD Hoja de datos Osciloscopios de bancos de trabajo 500 MHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
T3DSO4108L-HD T3DSO4108L-HD Hoja de datos Osciloscopios de bancos de trabajo 1GHz, 10 GS/s ESR, 4 CH, 500 Mpts/Ch (Single Channel), 12-Bit HD Low Profile Oscilloscope
