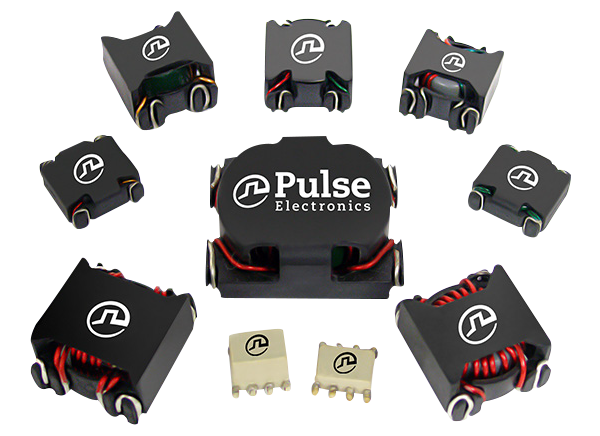

Pulse Electronics SLIC/Shasta SMT Common Mode Chokes
Pulse Electronics SLIC/Shasta SMT Common Mode Chokes are AEC-Q200 qualified chokes that are IATF 16949 certified. These common mode chokes feature a dielectric strength of 1500Vrms, inductance range of 94µH to 1.8mH, and 2.8Arms to 20Arms current rating. The SLIC/Shasta SMT common mode chokes are RoHS compliant and Moisture Sensitivity Level (MSL) 1 classified. These common mode chokes operate within the -40°C to 125°C temperature range.
Features
- Wide variety of package sizes available
- 2.8Arms to 20Arms current rating range
- 94µH to 1.8mH inductance range
- 1500Vrms dielectric strength
- RoHS compliant
- IATF 16949 certified
- Moisture Sensitivity Level (MSL) 1
- AEC-Q200
Applications
- Data communications
- Computing
- Industrial
Related Application
onsemi & YAGEO Group Intelligent Factory Automation Power
Explore the dynamic landscape of factory automation and its pivotal role in modern industry.
View Results ( 12 ) Page
| N.º de artículo | Hoja de datos | Inductancia | Impedancia | Resistencia CC máxima | Frecuencia autorresonante | Temperatura de trabajo mínima | Temperatura de trabajo máxima |
|---|---|---|---|---|---|---|---|
| PM3927NLT |  |
800 uH | 1.3 kOhms | 27 mOhms | 20 MHz | - 40 C | + 125 C |
| PM2741NLT | |
94 uH | 450 Ohms | 30 mOhms | 15 MHz | - 40 C | + 125 C |
| PM2744NLT | |
280 uH | 1 kOhms | 13.2 mOhms | 2 MHz | - 40 C | + 125 C |
| PM0429NLT | |
810 uH | 14 mOhms | 1.7 MHz | - 40 C | + 125 C | |
| PM0469NLT | |
630 uH | 10 mOhms | 1.8 MHz | - 40 C | + 125 C | |
| PM0502NLT | |
470 uH | 3.6 kOhms | 8 mOhms | 2.5 MHz | ||
| PM1265NLT | |
380 uH | 4.1 mOhms | 4.6 MHz | - 40 C | + 125 C | |
| PM2670NLT | |
500 uH | 4.25 mOhms | 1.4 MHz | - 40 C | + 125 C | |
| PM2743NLT | |
383 uH | 18 mOhms | 2.5 MHz | - 40 C | + 125 C | |
| PM2750NLT | |
400 uH | 9.4 mOhms | 2.6 MHz | - 40 C | + 125 C |
