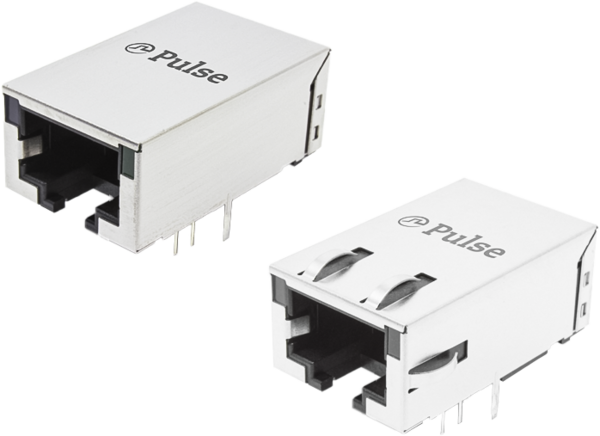

Pulse Electronics JTA-xCx PCIe Integrated Magnetic Connectors
Pulse Electronics PulseJack™ JTA-xCx PCI Express (PCIe) Low-Profile Integrated Magnetic Connectors (ICMs) support connectivity for PCIe expansion and NIC cards. The JT4-xCx series covers 1G, 2.5G, 5G, and 10G and is suitable for 4- and 5-speed multi-rate PHYs. These connectors stand at just 11.92mm above the PCB and are designed for PCIe boards fitted in slots with a 1U (22.48mm) pitch or below on the motherboard or expansion. The 30μ” gold-plated contact terminals provide a minimum of 750 insertions and low contact resistance for improved connectivity. Pulse Electronics PulseJack JTA-xCx PCIe ICMs feature a commercial temperature range with up to 90W power over Ethernet (PoE) and an option for EMI and LEDs. Applications include access points, routers, base stations, smart grids, and robot controls.
Features
- 1x1 tab-down, low-profile ICM targeted for PCIe applications where component height is critical <12mm
- Multiple data rates and options in one footprint and size
- Meets IEEE802.3 Ethernet standard for 1G to 10G data rates
- EMI and LED options
- Side-entry design
- Excellent electrical performance up to 400MHz
- High bandwidth connectivity
- Commercial temperature range with up to 90W PoE
- Matched to all major IC suppliers for 1G, 2.5G, 5G, and 10G
- Moisture sensitivity level (MSL) 1
- UL certificate file No. E493645
- Halogen free
- RoHS and REACH compliant
Applications
- Access points
- Base stations
- Switches
- Routers
- Process controls
- Robot controls
- Security displays
- Smart grids
Specifications
- 28.82mm x 17.53mm x 11.92mm dimensions (L x W X H)
- 30μ” gold contact plating
- Durability of >750 insertions
- -2dB insertion loss minimum (typical -1.4dB for 10G)
- MSL 1 supports wave soldering +270°C maximum
- 0°C to +70°C operating temperature range

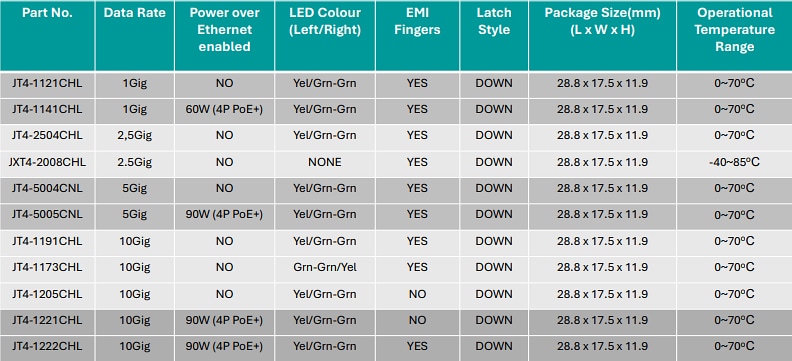

Series Overview
