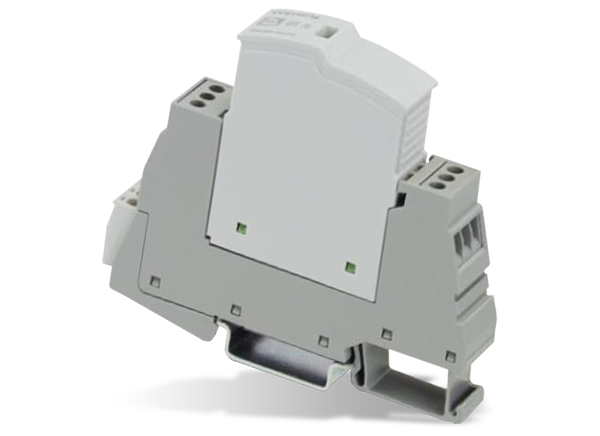

Phoenix Contact PLT-SEC Surge & Overcurrent Protectors
Phoenix Contact PLT-SEC Surge and Overcurrent Protectors offer ideal surge protection for power applications from 24VAC/DC to 230VAC/DC. Phoenix Contact PLT-SEC includes a 120V product with a UL Type 2 listing approval. This UL listing provides smoother and more time- and cost-effective integration of products into new and existing applications. Phoenix Contact PLT-SEC surge suppressors feature a slim 17.7mm DIN rail footprint along with local and remote status indication. The series also offers pluggable, hot-swappable capability for easier maintenance.
Features
- UL Type 2 Listed for easy integration into existing applications
- Dual-rated for AC and DC applications
- Local and remote status indications to easily monitor system health
- Keyed plugs and bases to ensure correct replacement of plugs
- Integrated marking locations
Specifications
- 24VAC/DC to230VAC/DC nominal voltage
- 34VAC/DC to 264VAC/DC maximum continuous operating voltage
- 1kA to 5kA nominal discharge current
- 10kA short circuit current rating
