onsemi NCS32100 Inductive Position Sensor

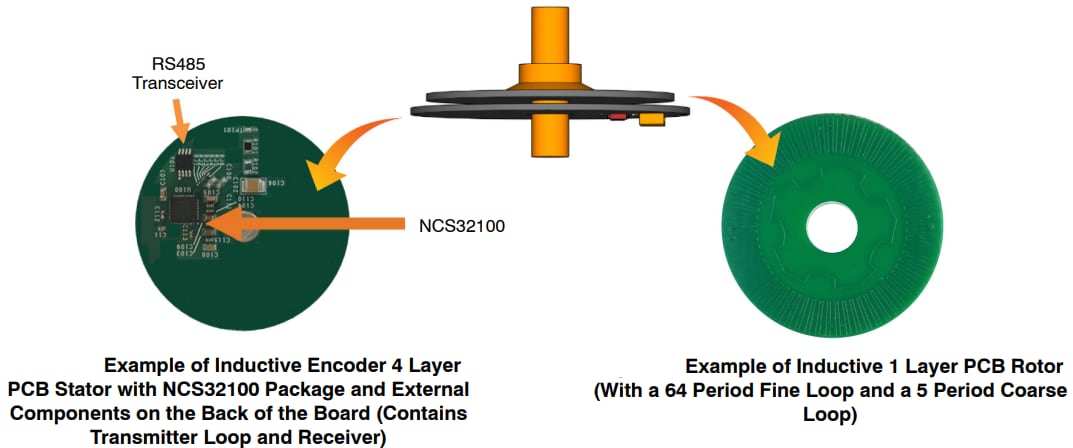

onsemi NCS32100 Inductive Position Sensor is a full-featured controller and sensor interface for high-resolution and high-accuracy angular sensing when paired with a printed circuit board sensor. This sensor supports a 2.5MHz UART interface for connection to a half-duplex RS-485 driver and battery backup for multi-turn count tracking. The NCS32100 sensor supports flexible configuration to connect various inductive sensor patterns and offers a variety of digital output formats. This sensor provides measurements of velocity, temperature, and battery backup. The NCS32100 features a power supply circuitry that supports a wide VCC range and provides battery backup capability. This inductive position sensor is ideally suited for use in industrial automation, angular position and velocity sensing, robotics, and servo control applications.

Features

6000rpm maximum speed at full accuracy
45000rpm maximum functional rotor speed
2.7V to 5.5V supply voltage range
Provides absolute position output with programmable index
Provides velocity, temperature, and battery backup measurements
Supports 2.5MHz UART interface for connection to a half-duplex RS-485 driver
Supports battery backup for multi-turn count tracking
Reports internal device temperature with programmable over-temperature thresholding
Reports backup battery voltage with programmable low battery thresholding
