NXP Semiconductors FRDM-KW36 Freedom Development Kit
NXP Semiconductors FRDM-KW36 Freedom Development Kit is a highly configurable, low-power, and cost-effective evaluation board for application prototyping and demonstrating the Kinetis® KW36/35 devices. This NXP evaluation board offers an easy-to-use mass-storage device mode flash programmer, a virtual serial port, and standard programming and run-control capabilities.
The KW36 is an ultra-low-power, highly integrated single-chip device that enables BLUETOOTH® Low Energy (BLE) or Generic FSK (at 250kbps, 500kbps, and 1000kbps) for portable, low-power embedded systems. The KW36 integrates a radio transceiver operating in the 2.36GHz to 2.48GHz range supporting a range of GFSK, an Arm Cortex-M0+ CPU, up to 512 KB Flash, and up to 64 KB SRAM, BLUETOOTH LE Link Layer hardware, and peripherals optimized to meet the requirements of the target applications.

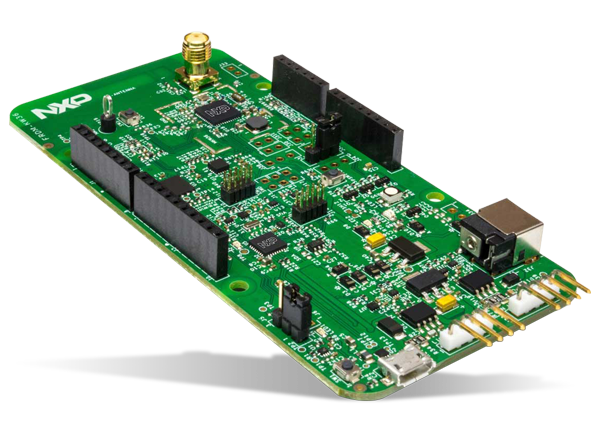

The FRDM-KW36 Freedom Development Kit can be used as a development board, or as a shield to connect to a host processor. The FRDM-KW36 integrates a highly sensitive, optimized 2.4GHz radio with a PCB F-antenna which can be bypassed to test via SMA connection, CAN and LIN transceivers, 4-Mbit external serial flash, multiple power supply options, push/capacitive touch buttons, switches, LEDs and integrated sensors.
Features
- NXP Semiconductors Kinetis KW36 MCU supporting BLUETOOTH LE and Generic FSK
- Can be configured as Host or Shield for connection to Host Processor
- Supports all DC-DC configurations
- Integrated PCB inverted F-type antenna and SMA RF port
- Minimum number of matching components
- FCC Part15 and EN300 328 compliant
- Serial Flash for OTA firmware upgrades
- NXP FXOS8700CQ 6-Axis eCompass
- 3D Accelerometer (±2g/±4g/±8g)
- 3D Magnetometer
- NXP TJA1057 high-speed CAN transceiver
- NXP TJA1027 LIN 2.2A/SAE J2602 transceiver
- OpenSDA and JTAG debug
- Full MCUXpresso support
Documents
Board Layout
Associated MCUs
NXP Semiconductors Kinetis KW36 & KW35 BLE Wireless Microcontrollers
Low power, highly integrated MCUs designed to enable BLE 5 and Generic FSK wireless connectivity.
