IXYS CLA120E1200HB Thyristor
IXYS CLA120E1200HB Thyristor is a high-efficiency single thyristor with a voltage rating of 1200V and a rated current of 120A. This thyristor features long-term stability, a planar passivated chip, and comes in an industry-standard TO-247 package. The CLA120E1200HB single thyristor is used in soft start AC motor control, DC motor control, power converter, AC power control, and lighting and temperature control applications.
Features
- Thyristor for line frequency
- Planar passivated chip
- Long-term stability
- 1200V VRRM repetitive peak reverse voltage
- 120A IT(AV) average on-state current
- -40°C to 120°C operating temperature range
- RoHS compliant
- Epoxy meets UL 94V-0
- Industry-standard TO-247 package
Applications
- Line rectifying 50/60 Hz
- Soft start AC motor control
- Lighting and temperature control
- DC motor control
- Power converter
- AC power control

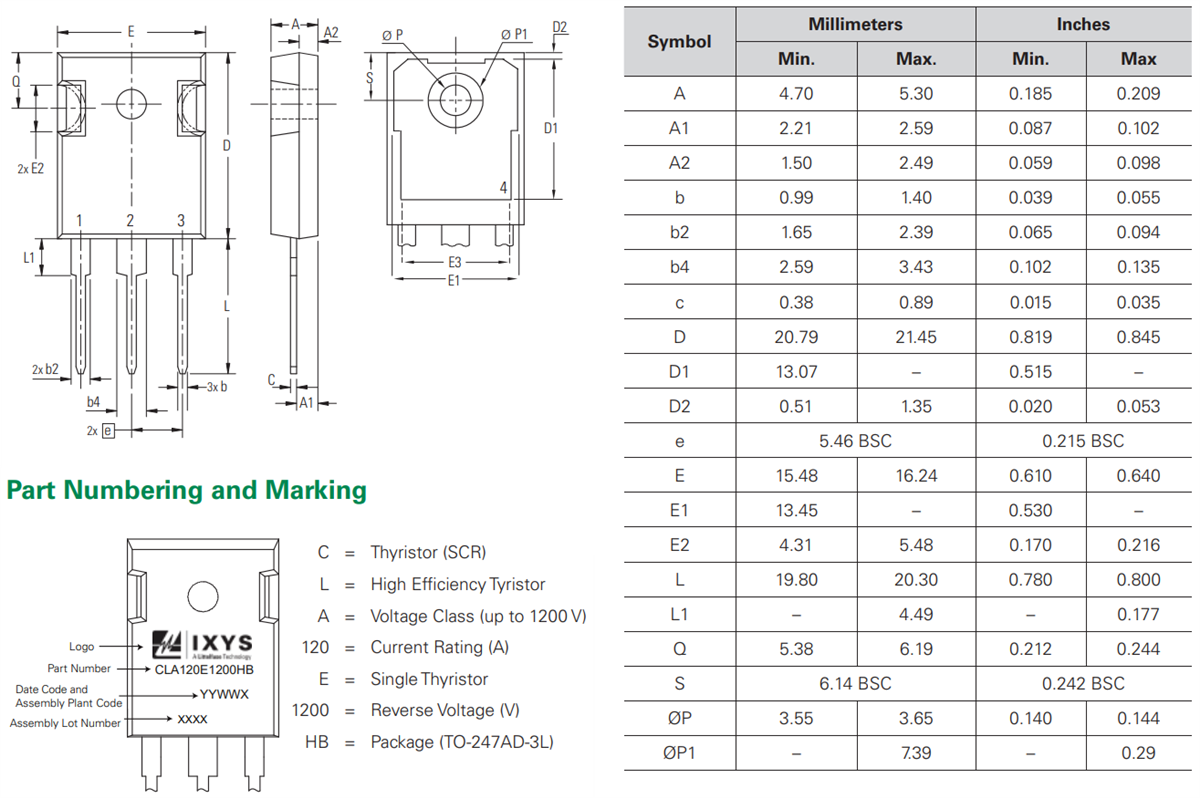

Package Dimensions (TO-247-3L)
