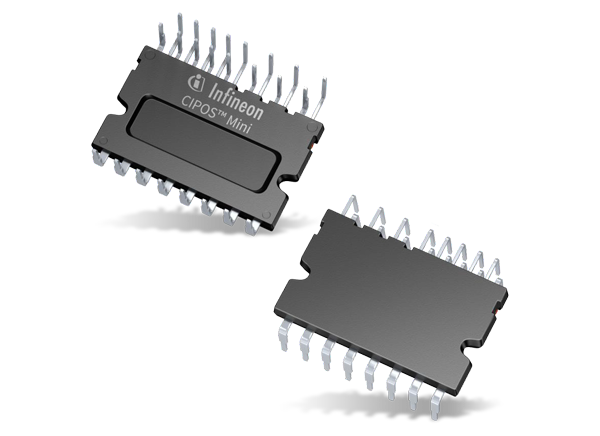

Infineon Technologies CIPOS™ Mini Intelligent Power Modules (IPMs)
Infineon Technologies CIPOS™ Mini Intelligent Power Modules (IPMs) are designed to control AC motors drive applications like refrigerators. The package is ideal for power applications that need good thermal conduction and electrical isolation, EMIsave control, and overload protection. 3Φ-bridges with CoolMOS™ CFD2 Power MOSFETs are combined with an optimized SOI gate driver for excellent electrical performance.
Features
- Wide 4A to 30A range of current rating
- High integration (bootstrap circuit, thermistor, bridge rectifier)
- Optimized for target application requirements (separate version for washing machine and air conditioner)
Development Tools
Infineon Technologies EVAL-M3-102T Control Board
Utilizes the IMC102T-F064 iMOTION Motor Control IC, designed for the iMOTION™ MADK platform.
Infineon Technologies REF-AIRCON-C302A-IM564 Reference Design Kit
An optimized reference design for 220V air conditioner applications.
Infineon Technologies EVAL-M1-IM535 Evaluation Board
Designed for applications with the IM535-U6D Intelligent Power Module (IPM).
Infineon Technologies EVAL-M1-CM610N3 iMOTION™ MADK Evaluation Board
A complete power stage powered by the IKCM10H60GA CIPOS™ Mini.
Related Products
Infineon Technologies CIPOS™ Intelligent Power Modules
A portfolio of highly integrated, compact power modules designed to drive motors.
Infineon Technologies CIPOS™ Micro Intelligent Power Modules (IPMs)
Compact, three-phase IPMs for low-power (up to 450W with heatsink) motor drive applications.
