Futaba AH Series Slim Design Display Modules

Futaba AH Series Slim Design Display Modules are a complete display solution in a compact package. The devices offer display options between 20×2 or full dot matrix and VFD or FSTN-LCD with various case color options. The high-contrast displays use a non-glare filter and are available in various fonts. The Futaba AH Series Slim Design Display Modules are BLUETOOTH®-compatible and ideal for POS, audio tuners, and sub-display applications.

Features

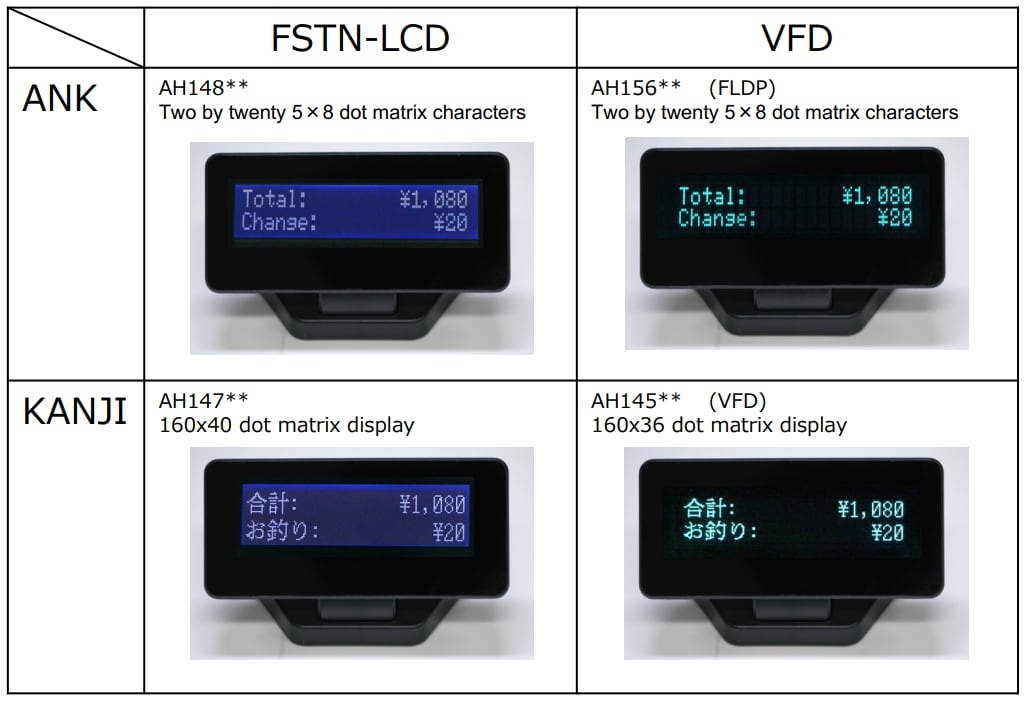

Display Options:
- 20×2 or Full Dot Matrix
- VFD or FSTN-LCD
Slim 13mm Display with Attached Self Supporting Base
Display Head Tilts up to 40 Degrees

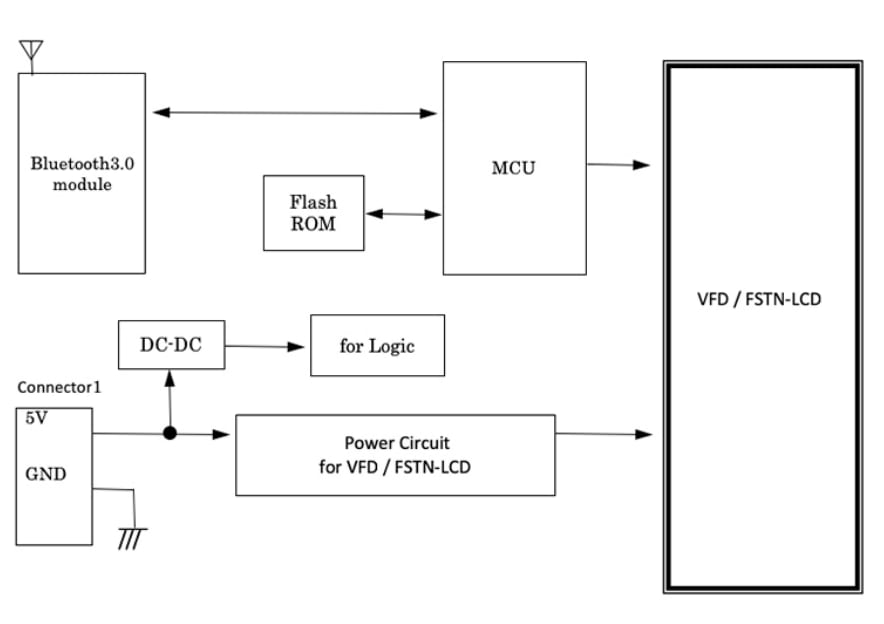

BLUETOOTH Connectable

ANK (AH148, AH156):
- USA, France, Germany, Japan, Korea, etc (1byte character)
Kanji (AH147, AH145):
- ANK+Japan (Shift JIS), China (Simplified/Traditional), Korea (2byte character)
