Infineon Technologies MOTIX™ TLE9186 Evaluation Board
Infineon Technologies MOTIX™ TLE9186 Evaluation Board (EVALTLE9186QVW) combines Infineon's TRAVEO™ CYT2B7 microcontroller (MCU) with the MOTIX SBC TLE9563 and the MOTIX TLE9186QVW 3-phase gate driver IC. All pins of the TLE9186QVW are accessible directly, and most of the pins through pin headers. A comprehensive ecosystem, including software (device driver) and a configuration wizard, streamlines the evaluation of the device and validation of advanced motor control applications.
Features
- MOTIX TLE9186QVW gate driver IC
- TRAVEO CYT2B7 microcontroller
- MOTIX SBC TLE9563
- Designed for 3-phase BLDC motors
- B6 bridge for direct motor connection
- Hall sensor connector
- Test points for easy measurements
- Universal serial bus (USB) port
- Onboard debugger
- Graphical user interface (GUI)
- Easy evaluation of the TLE9186QVW features
- Complete package with MOTIX HW, SW, and tool
Applications
- 12V three-phase BLDC motors
- 12V water/fuel pumps
- 12V fan applications
- 12V comfort seats, sunroofs
- 12V integrated thermal management systems

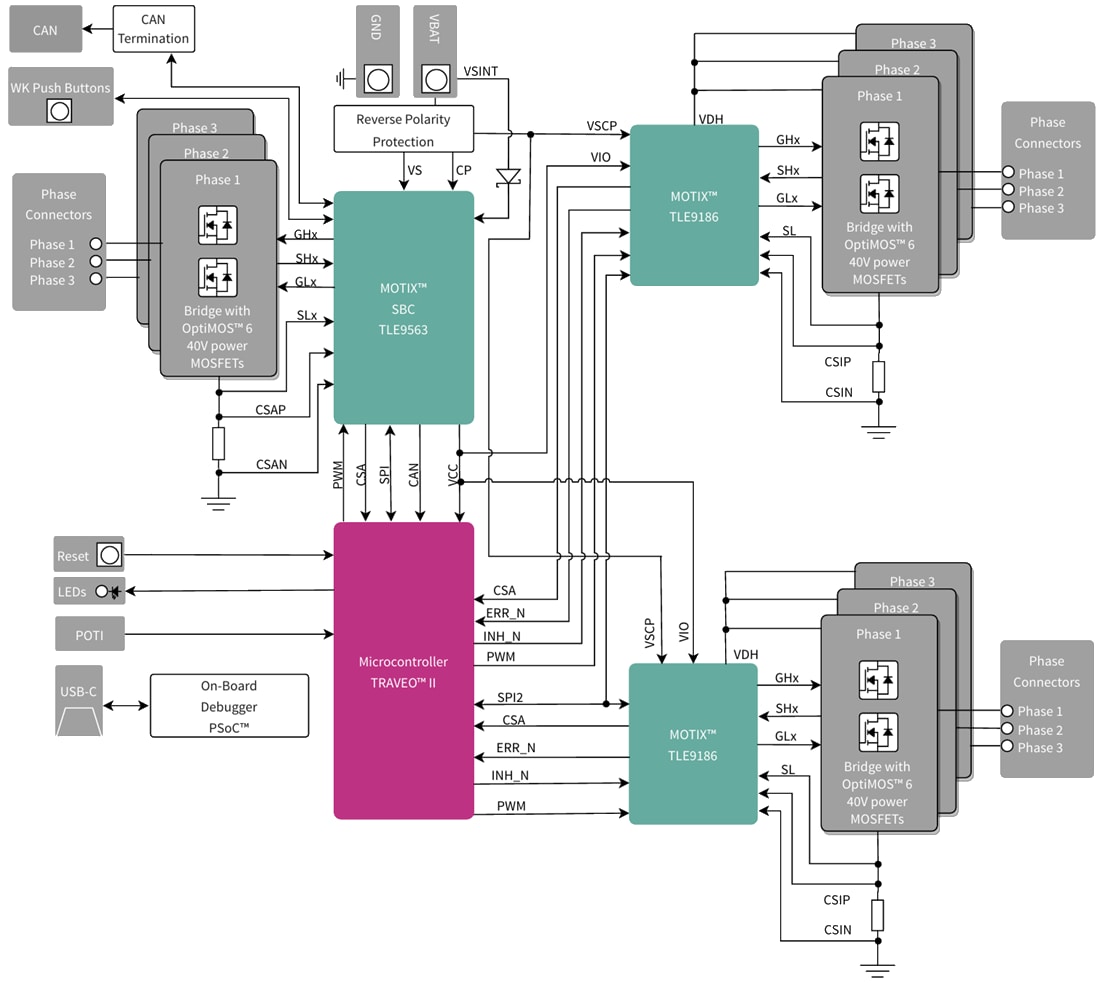

Block Diagram
Related Products
Infineon Technologies CYT2B7 TRAVEO™ T2G 32-bit Automotive MCUs
Designed for Automotive Body applications such as body control modules, HVAC, and lighting.
Infineon Technologies MOTIX™ TLE9186QVW 3-Phase Gate Driver IC
Drives six MOSFETs, with a total gate charge of 60nC, at a switching frequency of 20kHz.
Infineon Technologies TLE956x DC Motor System ICs
Combines DC motor control with supply functionalities such as power supply, CAN FD, and LIN.
