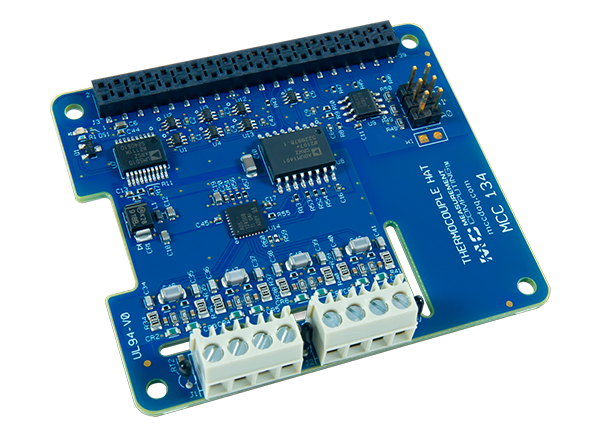

Digilent MCC 134 Thermocouple DAQ HAT for Raspberry Pi features four thermocouple inputs for adding temperature measurement capability to Raspberry Pi-based data acquisition systems. The HAT features a 24-bit resolution and provides professional-grade accuracy. The MCC 134 also offers open thermocouple detection to monitor broken or disconnected thermocouples and each channel type are selectable on a per-channel basis. Up to eight MCC HATs are stacked onto one Raspberry Pi.
Four isolated thermocouple inputs
24-bit A/D converter
1-second update interval, minimum
Thermocouple types J, K, R, S, T, N, E, and B supported
Cold junction compensation
Screw terminal connections
One MCC 134 DAQ HAT
2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
Printed insert: Getting Started with MCC DAQ HATs
MCC packaging assembly/foam, etc.
