DFRobot DFR0564 USB Charger for 7.4V LiPo Battery
DFRobot DFR0564 USB Charger for 7.4V LiPo Battery is a compact and efficient device that can charge the 7.4V lithium battery up to 1A. This USB charger features a lightweight micro-USB interface ideal for outdoor applications. The DFR0564 USB charger can also be embedded in a variety of 7.4V lithium battery-powered projects, adding a USB charging function. This also eliminates the need for battery swapping and bulky power adapters.
Features
- High-efficiency boost type USB charger designed for 7.4V Lithium battery
- Charge input and battery port reserved pads for easy modification and measurement
- All-round protection of battery and power supply
- Multifunction LED status indicator
- USB ESD shell
Specifications
- 3V to 6V charge input voltage (USB IN)
- 7.4V 2s cells Li-Polymer/Li-ion battery
- 1A maximum charge current
- 8.4V±1% charge cutoff voltage
- >90% charge efficiency
- -40℃ to 85℃ operating temperature range
- 28mm x 37mm product dimensions
- Protections
- Battery input (BAT IN)
- Overcharge protection
- Reverse connection protection
- USB IN
- Adaptive input current limitation
- Overheat/reverse connection protection
- Battery input (BAT IN)
Applications
- Robots and motor drivers
- Lithium battery charger
DFR0564 Board Overview

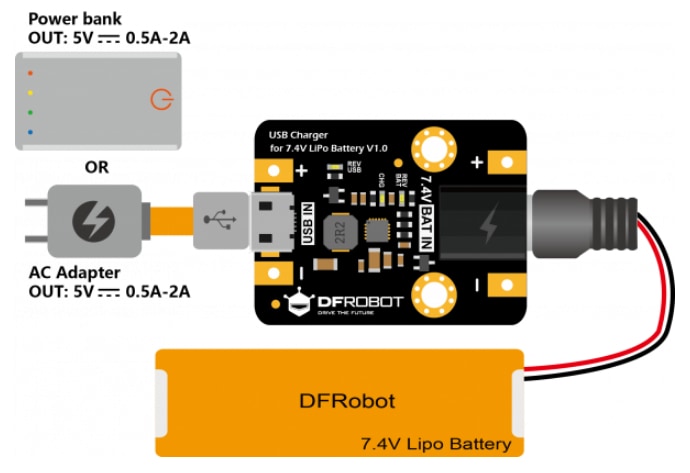

DFR0564 Application Circuit
