CUI Inc PSK-xD Internal AC-DC Power Supplies

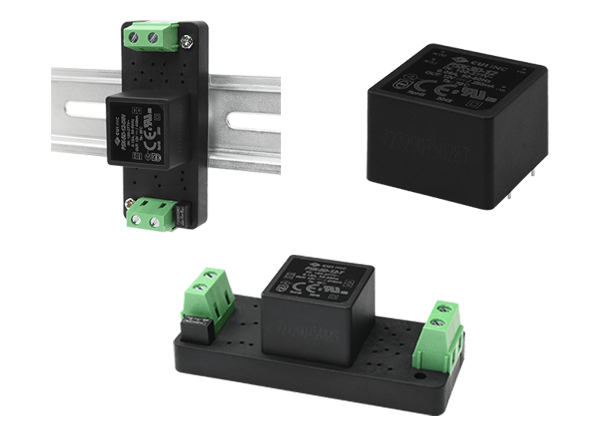

CUI Inc PSK-3D/5D/10D/15D/20D/30D Internal AC-DC Power Supplies offer an 85VAC to 305VAC input voltage range, 6.0A maximum output current, and up to 90% efficiency rating. These power supplies feature a smaller footprint than the PSK-xW series, and are available in chassis mount, board mount, and DIN rail options. CUI Inc PSK-3D/5D/10D/15D/20D/30D Internal AC-DC Power Supplies provide overvoltage, overcurrent, and short-circuit protection.


  • Class B emissions
  • Designed to meet 60601 medical safety standard (PSK-15D and PSK-20D)
  • Overvoltage, overcurrent, and short-circuit protections
  • Certified to 62368, 61558, and 60335 safety standards


  • 85VAC to 305VAC input voltage range
  • 6.0A maximum output current
  • Up to 90% efficiency rating
  • -40°C to +85°C operating temperature range
