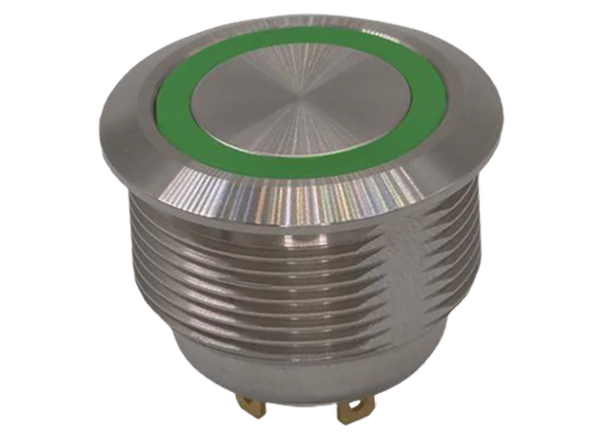

C&K Switches ATPS22 Anti-Vandal Sealed Pushbutton Switches

C&K Switches ATPS22 Anti-Vandal Sealed Pushbutton Switches offer 1 million mechanical lifecycles, 2A/36VDC contact rating, and 1000MΩ insulation resistance. These IP67-sealed switches feature various colors of LED illuminated indicators and non-illuminated options. The ATPS22 series boasts a height of 15.85mm, making it ideal for space-constrained applications. C&K Switches ATPS22 Anti-Vandal Switches are suitable for alarms, automatic food and drink vending machines, parking lot ticket machines, industrial instruments, and much more.

Features

  • Various colors of LED illuminate indicators
  • Non-illuminated options available
  • Choices of actuator with ring or power logo
  • Momentary

Applications

  • Service Stations and Interactive Control Panels
    • Pedestrian crossing signal activation
    • Parking lot ticket machines and paying stations
    • Locomotive compartments
  • Medical
    • Portable homecare devices
    • Ventilate equipment
    • Patient monitoring
  • Safety and Security
    • Access control
    • Door buttons
    • Intercoms
    • Call stations
    • Emergency / panic buttons
    • Handicap / assistance buttons

Specifications

  • IP67 sealed rating
  • IK10 (stainless steel bushing)
  • 2A/36VDC rated
  • 1 million mechanical lifecycles
  • 1000MΩ min. at 500VDC insulation resistance
  • 50mΩ max. at 1A 12VDC initial contact resistance
  • -20°C to +70°C operating temperature range
  • RoHS compliant
Publicado: 2021-12-06 | Actualizado: 2022-03-11
