BCM Advanced Research 3.5" Single Board Computers (SBCs)
BCM Advanced Research 3.5" Single Board Computers (SBCs) are compact, high-performance embedded platforms designed for a wide range of industrial and commercial applications. These SBCs, including models like the ECM-3455J, ECM-ADLN-N97, and ECM-RPLP, offer scalable computing power from energy-efficient Intel® Celeron processors to high-performance 13th Gen Intel Core CPUs. Engineered for reliability and versatility, these SBCs support features such as fanless operation, wide voltage input, triple-display outputs, DDR5 memory, and advanced connectivity options like Thunderbolt 4 and USB Type-C®. These capabilities make these devices ideal for deployment in digital signage, industrial automation, medical devices, smart kiosks, and edge Artificial Intelligence (AI) systems. With robust I/O support and long product life cycles, the BCM Advanced Research 3.5" SBCs provide a flexible and future-ready solution for embedded computing needs.
Features
- ECM-3455J
- Intel Celeron J3455 quad-core System-on-Chip (SoC) processor, 1.5GHz to 2.3GHz
- 1x SO-DIMM DDR3L, 1600MHz to 8GB
- Onboard 32GB eMMC
- Supports dual displays - HDMI and 18/24-bit LVDS
- Supports dual LAN
- 1x M.2, 1x mini-PCIe with mSATA support and µSIM
- Onboard TPM 2.0
- 4x USB 3.0, 4x USB 2.0
- 2x COM
- I2C, SMBus, GPIO
- 2x Gigabit LAN
- Fanless operation with heat spreader
- Wide 9V to 36V DC-in range
- ECM-ADLN-N97
- Onboard Intel Processor N97 , up to 3.60GHz, up to 12W TDP
- Intel Alder Lake-N platform
- 1x SODIMM socket supports DDR5 4800 MT/s up to 16GB
- Onboard 64GB eMMC
- Supports 3x independent displays
- 2x DisplayPort 1.4b 4K at 60Hz
- LVDS/eDP
- USB Type-C OTG
- 3x USB 3.2 Gen2 Type-A (Red), 4x USB 2.0, 2x COM, and 1x SATAIII
- 2x Intel ethernet controller I226-V (2.5GbE)
- M.2 B-Key 2242/3042 with nano SIM card socket
- Wide 12V to 24V DC-in range
- Fanless operation, 12W CPU (heatsink)
- Optional heat spreader cooling design
- ECM-RPLP
- Intel Core™ i7/i5/i3 mobile processor supports up to 12x cores, up to 28W
- Intel Raptor Lake P mobile platform
- 2x DDR5 SODIMM sockets support up to 64GB
- Intel Iris Xe graphics/Intel UHD graphics (CPU dependent)
- 2x DP++ and LVDS
- Supports 3x independent displays
- Integrated USB Type-C Thunderbolt 4
- 2x Intel I226-LM Ethernet controller (2.5GbE)
- M.2 E-Key CNVi, M.2 M-Key NVMe, and M.2 B-Key with nano SIM card slot
- 4x USB 3.2, 3x USB 2.0, 4x COM ports, and 1x SATA III
- 12V to 24V DC-in range
- Fanless operation (15W CPU)
Applications
- ECM-3455J
- Industrial control systems
- HMI panels
- Digital signage
- Retail kiosks and Point-of-Sale (POS) terminals
- Medical and healthcare devices
- Fanless environments requiring quiet operation
- ECM-ADLN-N97
- Low-power edge computing
- Fanless embedded systems
- Triple-display digital signage
- Compact Artificial Intelligence (AI)-enabled devices
- Internet of Things (IoT) gateways and smart retail systems
- Applications requiring DDR5 memory and USB-C OTG
- ECM-RPLP
- High-performance edge AI and machine vision
- Smart kiosks and interactive terminals
- Medical imaging and diagnostics
- Industrial robotics and automation
- Multi-display control systems
- Applications needing Thunderbolt 4, 2.5GbE LAN, and up to 64GB DDR5
Datasheets
- ECM-3455J - Intel Celeron J3455 3.5” SBC Micro Module
- ECM-ADLN-N97 - 3.5” SBC, 12th Gen Intel processor N97, quad-core, fanless operation, low-profile design
- ECM-RPLP - 13th Gen Intel Core™ i7/i5/i3 mobile processor onboard, 3.5” SBC
ECM-3455J Overview
ECM-ADLN-N97 Overview

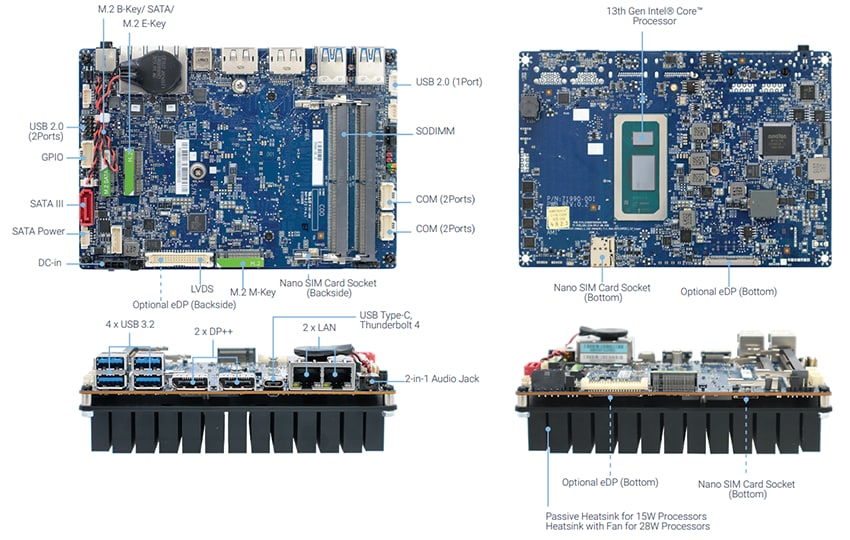

ECM-RPLP Overview
ECM-3455J Block Diagram
Publicado: 2025-05-09
| Actualizado: 2025-05-28
