Analog Devices Inc. MAX40204EVKIT Evaluation Kit

Analog Devices Inc. MAX40204EVKIT Evaluation Kit facilitates the evaluation of the MAX40204, a precision bidirectional current-sense amplifier with wide common-mode input in an 8-bump WLP package. The MAX40204 features an ultra-low 2μV input offset voltage enabling the use of a small sense resistor to reduce power dissipation.

Analog Devices Inc. MAX40204EVKIT Evaluation Kit offers bidirectional and unidirectional current-sensing options, a jumper (J1) to switch between two gain options (10V/V and 100V/V), and another jumper (J2) to place the board in low power mode. The MAX40204EVKIT kit features Kelvin connections for force and sense at the amplifier inputs and a very precise current sense resistor with a ±0.5% tolerance for accurate measurement.

The Maxim MAX40204EVKIT Evaluation Kit is available with the MAX40204ANA+ installed and includes various test points for additional evaluation.

Features

  • Wide -0.1V to 36V input common mode range
  • Operates off a single 5V supply
  • Unidirectional/bidirectional operation
  • On-the-fly gain input jumper
  • Shutdown mode jumper
  • -40°C to +125°C temperature range
  • Proven PCB layout
  • Fully assembled and tested
  • Lead-free and RoHS-compliant

Required Equipment

  • MAX40204 eval kit
  • +5V, 10mA DC power supply
  • 2.5V, 10mA DC power supply
  • +12V, 1A DC power supply
  • Electronic load or equivalent resistor load
  • Two digital voltmeters (DVM1, DVM2)

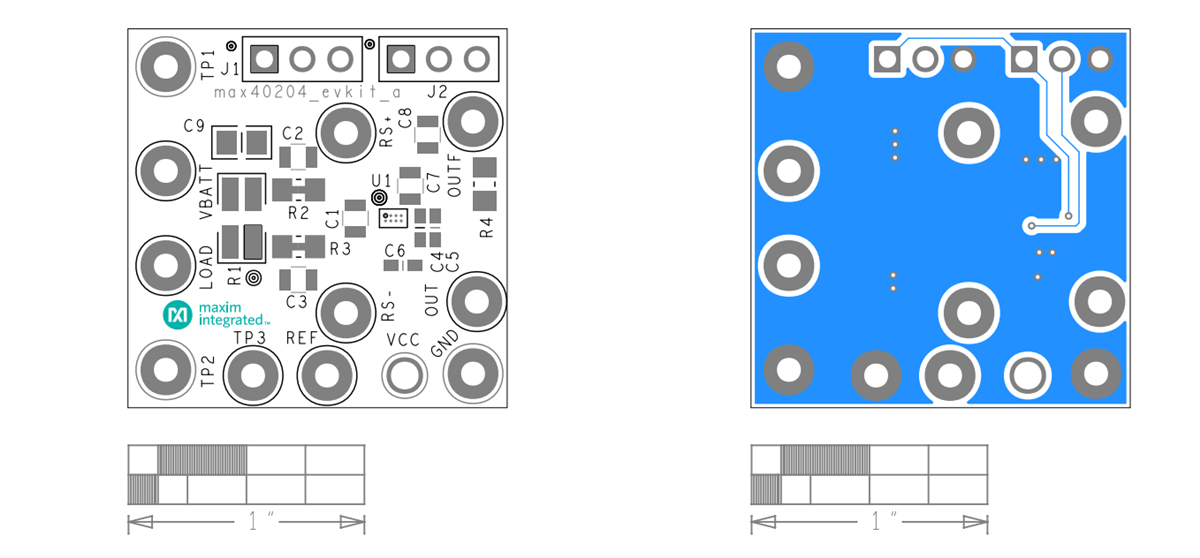

PCB Layout

Analog Devices Inc. MAX40204EVKIT Evaluation Kit
