Analog Devices Inc. EVAL-CN0523-EBZ Evaluation Board
Analog Devices EVAL-CN0523-EBZ Evaluation Board is USB-powered and based on the HMC407 RF power amplifier optimized for transmitting signal chains in the 5.8GHz ISM band. Combining two HMC407 amplifiers, the EVAL-CN0523-EBZ allows a gain of 28dB and return losses of more than 10dB throughout its RF band of operation.
The ADI EVAL-CN0523-EBZ Board implements an overtemperature management feature wherein the amplifiers are automatically disabled when the board temperature reaches a preset threshold, and it automatically returns to normal operation once the temperature falls below the hysteresis point.
Designed to be used with the ADALM-PLUTO or other software-defined radio platforms, the EVAL-CN0523-EBZ offers a small form factor with proportions of 25.4mm x 50.8mm x 1.5748mm (PCB only). The RF input and output are created with a 50Ω impedance, facilitating direct connection between the circuit and standard 50Ω systems.
A micro-USB connector is used for the input power, permitting the evaluation board to use most +5V wall wart power supplies available in the market.
Features
- 5.8GHz RF power amplifier
- 24dB of gain
- 50Ω matched SMA input and output connectors
- Over temperature monitoring
- USB powered
Design Resources
- Schematic
- Bill of Materials
- Assembly files
- Gerber files
- Allegro layout file
Download Design Files 7.88M
Associated Products
Analog Devices Inc. ADM7150 800mA Ultralow Noise RF Linear Regulator
Operates from 4.5V to 16V and provides up to 800mA of output current.
Analog Devices Inc. ADM717x 6.5V CMOS LDOs
2.3V to 6.5V, 500mA to 2A, ultra-low noise, high PSRR, fast transient response CMOS LDO.
Analog Devices Inc. ADALM-PLUTO Active Learning Module
Introduces the fundamentals of SDR, RF, and wireless communications to students.
Simplified Block Diagram

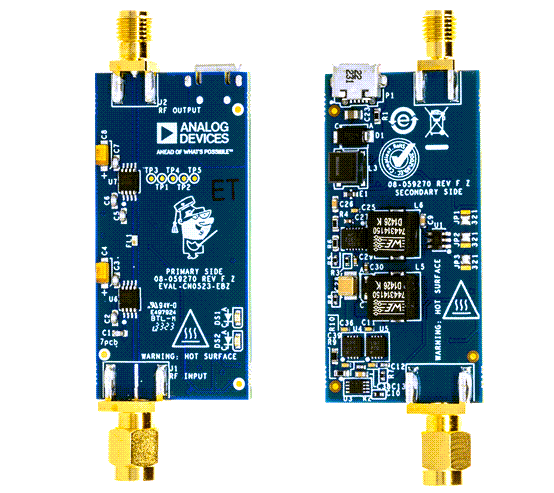

Layout
