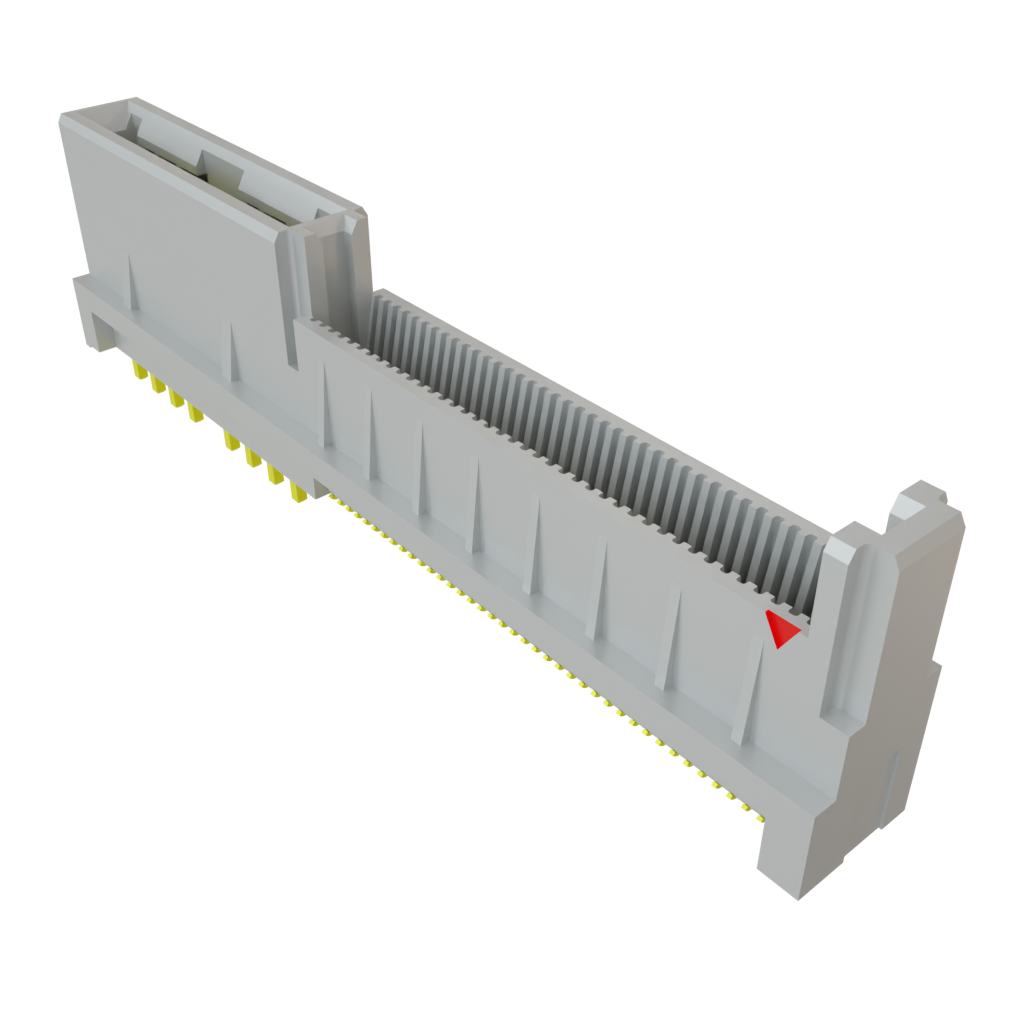

HSEC8-140-01-S-PV-4-1

Name: Samtec HSEC8-140-01-S-PV-4-1
Brand: Samtec
SKU: 200-HSEC814001SPV41
Price: 13586 CLP
Availability: InStock

Las imágenes son para referencia solamente
Ver especificaciones del producto

Mouser N.º:

200-HSEC814001SPV41

Fabricante N.º:

HSEC8-140-01-S-PV-4-1

Fabricante:

Samtec

Descripción:

Conectores de borde de tarjeta estándar 0.80 mm High-Speed Power/Signal Combo Edge Card Connector

Hoja de datos:

HSEC8-140-01-S-PV-4-1 Hoja de datos (PDF)

Modelo ECAD:

Descargue Library Loader gratis para convertir este archivo para su herramienta ECAD. Conozca más sobre el modelo ECAD.

Más información

Conozca más sobre Samtec HSEC8-140-01-S-PV-4-1

En existencias: 82

Existencias:: 82 Se puede enviar inmediatamente

Se ha producido un error inesperado. Vuelva a intentarlo más tarde.
Plazo de entrega de fábrica:: 9 Semanas Tiempo estimado de producción de fábrica para cantidades superiores a las que se muestran.

Introducir cantidad:

Mínimo: 1 Múltiples: 1

Precio unitario:

Precio ext.:

Est. Tarifa:

Precio (CLP)

Cantidad	Precio unitario	Precio ext.
	$13.586	$13.586
	$12.555	$125.550
	$11.872	$296.800
	$11.435	$960.540
	$8.949	$2.255.148
	$7.381	$3.720.024
	$5.936	$5.983.488
	$4.782	$9.640.512

.hidden-for-nojs { display: none; } .pull-right-nojs { justify-content: flex-end; }

Atributo del producto	Valor de atributo	Seleccionar atributo
Fabricante:	Samtec
Categoría de producto:	Conectores de borde de tarjeta estándar
RoHS:
Producto:	Headers
Número de posiciones:	44 Position
Estilo de montaje:	Mounting Peg
Ángulo de montaje:	Straight
Revestimiento del contacto:	Gold
Serie:	HSEC8
Marca:	Samtec
Disposición de los contactos:	Power, Signal
Material del contacto:	Phosphor Bronze
Régimen de corriente:	3.2 A, 27.5 A
Material del alojamiento:	Liquid Crystal Polymer (LCP)
Temperatura de trabajo máxima:	+ 125 C
Temperatura de trabajo mínima:	- 55 C
Número de filas:	2 Row
Empaquetado:	Tray
Tipo de producto:	Standard Card Edge Connectors
Cantidad de empaque de fábrica:	42
Subcategoría:	Card Edge Connectors
Nombre comercial:	Edge Rate
Peso de la unidad:	1,312 g

Productos encontrados:

Para mostrar productos similares, seleccione al menos una casilla de verificación

Seleccione al menos una de las casillas de verificación anteriores para mostrar productos similares en esta categoría.

Atributos seleccionados: 0

Filtrar documento:

Specification Sheets

Technical Resources

Test Report (PDF)

CNHTS:: 8538900000
CAHTS:: 8536690020
USHTS:: 8536694040
JPHTS:: 853669000
KRHTS:: 8536691000
TARIC:: 8536693000
MXHTS:: 8536699999
BRHTS:: 85366990
ECCN:: EAR99

Edge Rate® HSEC8 High-Speed Edge Card Connectors

Samtec Edge Rate® HSEC8 High-Speed Edge Card Connectors are part of the 28+ Gbps Solution product line. The connectors feature the rugged Edge Rate contact system designed for signal integrity and multiple mating cycles. Card slot options include 1.60mm (0.062") and 2.36mm (0.093"). Samtec Edge Rate® HSEC8 High-Speed Edge Card Connectors' available options include weld tabs, board locks, and cable latching.

5G Solutions

Samtec 5G Solutions support the ultra-high frequencies and high data rates that emerging 5G technologies demand. As this 5G network quickly gains momentum, new systems, devices, and equipment are needed for technologies such as mmWave, Massive MIMO, beamforming, and full-duplex (FDX). Samtec 5G Solutions feature high-performance products for four applications: Test and Development Systems, Remote Radio and Active Antennas, Network Equipment, and Automotive and Transportation.

High-Speed Edge Card Connectors

Samtec High-Speed Edge Card Connectors feature a wide variety of pitches, including 0.5mm, 0.635mm, 0.8mm, 1mm, 1.27mm, 1.6mm, and 2mm. Mounting angles include straight, right, and vertical. These connectors are offered in an expansive range of mounting styles such as edge mount, board lock, mounting peg, SMD/SMT, straddle mount, through hole, and more. The number of positions on Samtec High-Speed Edge Card Connectors ranges from 8 to 300.

HSEC8-PV Vertical Edge Rate Card Socket

Samtec HSEC8-PV Vertical Power/Signal Combo Edge Rate^® Card Socket features a 28Gbps high-speed channel. The HSEC-PV comes with the option of one or two banks of power pins; each bank includes two power pins and is rated up to 60 Amps. The HSEC8-PV socket offers black liquid crystal polymer insulation and a -55°C to +125°C operating temperature range. Samtec HSEC8-PV Vertical Power/Signal Combo Edge Rate Card Socket is ideal for 50Ω applications and certain 75Ω applications with a mating card thickness of 1.60mm (0.062").

Rugged SI System Connectors for Embedded Vision

Samtec Rugged SI System Connectors for Embedded Vision are available in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The number of positions ranges from 10 to 200, while the mounting angles include straight, right, and vertical. Samtec Rugged SI System Connectors for Embedded Vision offer stack heights as low as 5mm. The product portfolio features headers, sockets, hermaphroditic connectors, receptacles, and connectors. Termination styles include solder and solder pin.

Rugged SI System Connectors for Automation

Samtec Rugged SI System Connectors for Automation are available in a range of stack heights, termination styles, and the number of rows. The mounting angles include right, straight, and vertical. The number of positions ranges from 10 to 200. Samtec Rugged SI System Connectors for Automation come in a variety of pitches, including 0.5mm, 0.635mm, and 0.8mm. The product portfolio includes connectors, headers, receptacles, sockets, and hermaphroditic connectors.
